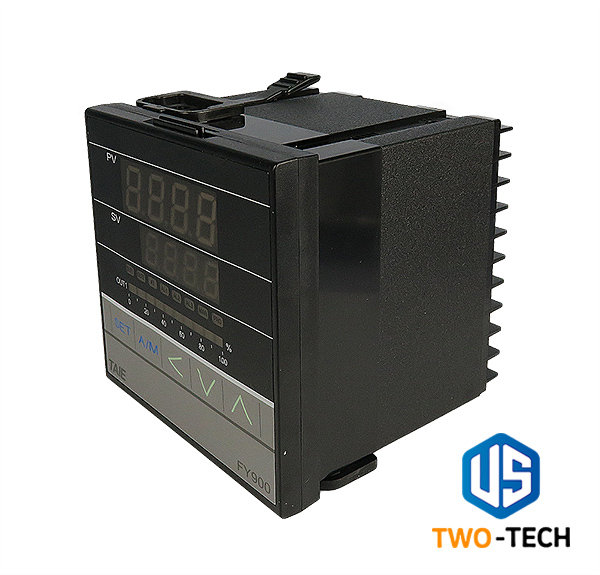

Taie FY900-101000 Temperature Controller

Temperature Controller Taie FY-9000
รหัสสินค้า  UST-FY900-101000

Model FY900-101000

Dimension 96X96mm

Supply voltage AC 85~265V，DC 15~50V (Option)

Frequency 50 / 60 HZ

Power consumption approx 4VA

Accuracy 0.2 % FS ± 1digit Sample time 250ms TC K , J , R , S , B , E , N , T , W5Re/W26Re , PLII , U , L RTD PT100,JPT100,JPT50 mA dc 4~20mA ,0~20mA mV / V dc 0~1V,0~5V,0~10V,1~5V,2~10V -10~10mV,0~10mV,0~20mV,0~50mV,10~50mV

Input
Decimal point position 0000 , 000.0 , 00.00 , 0.000 Available for linear input (mA / mV / V) Relay SPDT type 3A , 220V , electrical life:100,000 times or more (under rated load) Voltage pulse For SSR drive. ON : 24V , OFF : 0V , max load current : 20mA Output 1 mA dc 4~20mA, 0~20mA. Maximum load resistance:560 Ω Voltage dc 0~5V , 0~10V , 1~5V , 2~10V . Max load current:20mA

Alarm 1 3A , 220V , electrical life:100,000 times or more (under rated load)

Control algorithm PID，PI，PD，P，ON / OFF(P=0)，FUZZY。

PID range P: 0.0 ~ 200.0 %，I: 0~3600s，D: 0~900s

Isolation Output terminals(control output , alarm , transmission) and input terminals are isolated separately

Isolated resistance 10MΩ or more between input and case (ground) at DC 500 V 10MΩ or more between output and case (ground) at DC 500 V

Dielectric strength 1000V AC for 1 minute between input terminal and case (ground) 1500V AC for 1 minute between output terminal and case (ground)

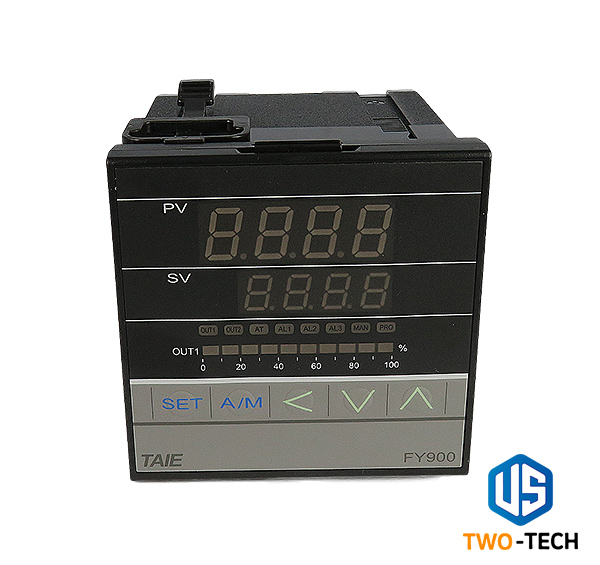

Operating temperature 0~50℃ Humidity range 20~90%RH Weight 300g Display Height PV:14mm SV:10mm
