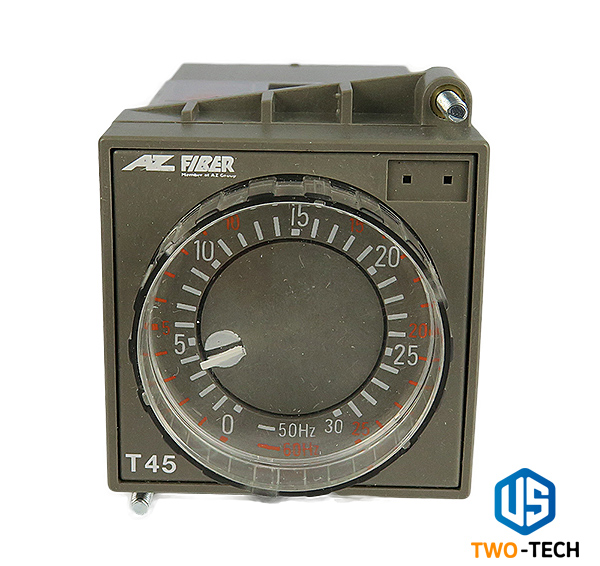

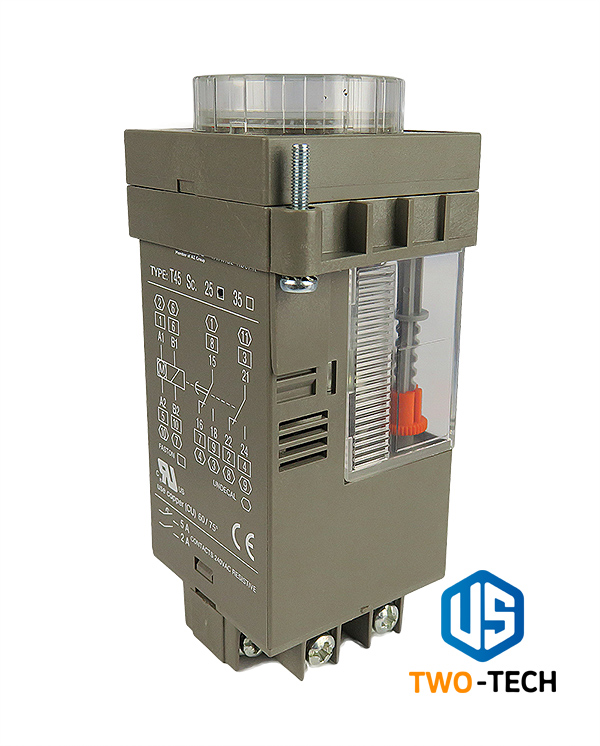

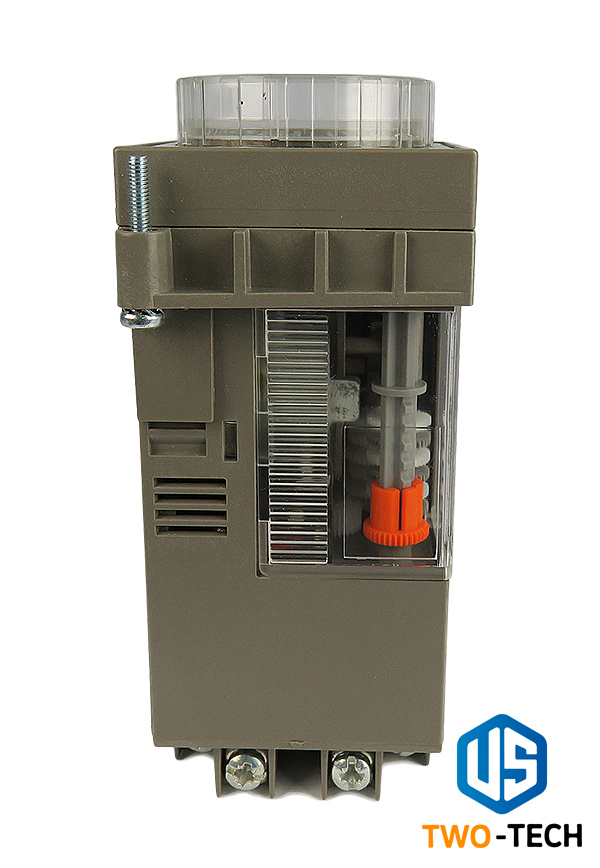

Timer Fiber T45

Timer Fiber T45

รหัสสินค้า UST-T45






Technical Data

Supply voltage 24, 48, 110, 230Vac 50 and 60Hz
Supply tolerance ±10%
Power consumption 5,5 VA
Operating factor 100%
Time range values multi-range: base 26 (on request bases 30,22 side time range selector (6-time range) Minimum time set 1/60 of time full-scale value
Repetition accuracy at constant parameters ±1,5% of time full-scale value
Reset time 300 ms

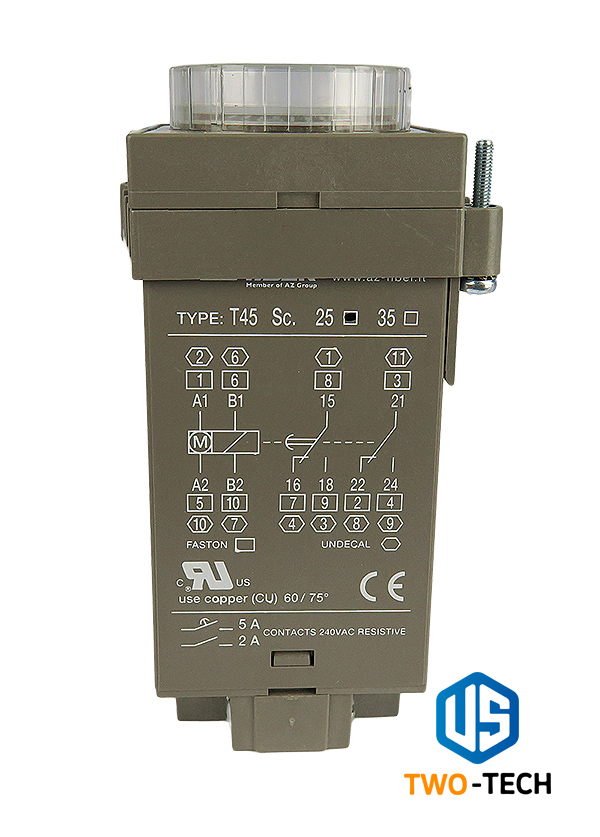

Diagrams 19, 23, 25, 35
Contacts rating delayed contact: 5(1)A 250Vac / 28Vdc instantaneous contact: 2(0,5)A 250Vac / 38Vdc
Electrical life delayed contact: 105 operations, cos ϕ 1 instantaneous contact: 2,5 x 105 operations, cos ϕ 1
Mechanical life 5 x 106 operations
Indication moving pointer 1800V/50Hz
Temperature range operating: -10°C +55°C storage: -30°C +80°C
Mounting front panel, with flange plug in socket

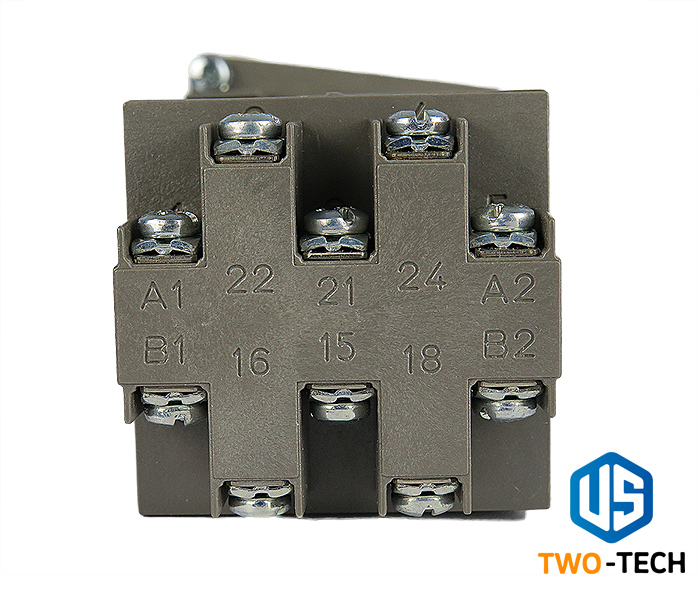

Connections faston 6,35 mm; screws (with accessory) 11-pin socket 8-pin socket (diagrams 19 and 23)
Protections  front : IP50
                       housing: IP30
Housing fiberglass reinforced polycarbonate
Overall dimensions 48 x 48 x 114 mm
Weight 260 g
Approvals (File No. E108173)
Declaration of conformity ROHS (Directive 2002/95/CE)
