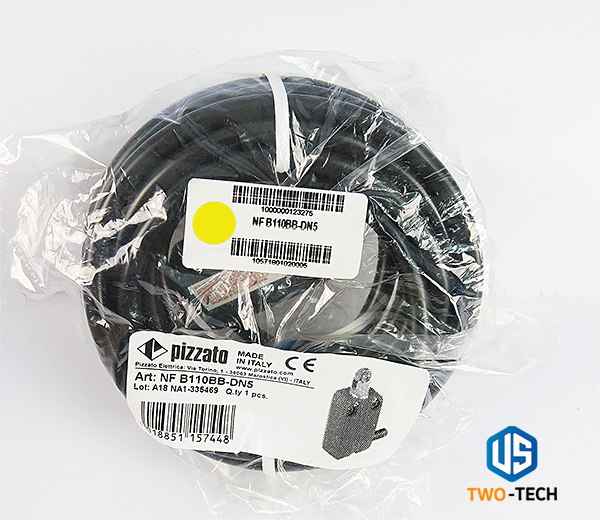

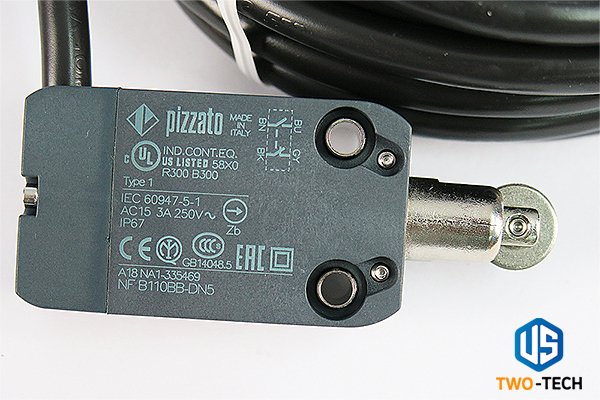

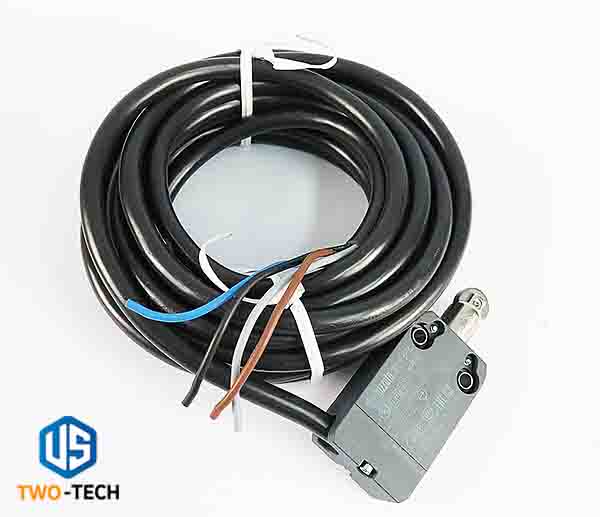

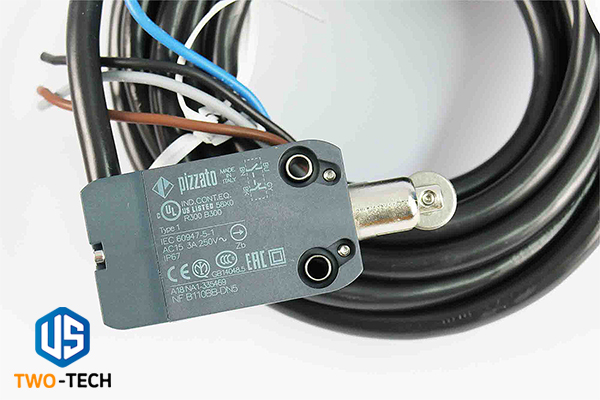

Safety Limit Switch

Main Features

·         Technopolymer housing, right or bottom cable output

·         Protection degrees IP67 and IP69K

·         2 types of integrated cable available

·         Versions with M12 connector for safety applications Æ

·         Versions with AMP connector

·         14 contact blocks available

·         37 actuators available

Technical Data

Housing

Housing made of fiber glass reinforced technopolymer, self-extinguishing, shock-proof and with double insulation o

Version with integrated cable, standard length 2 m. Other lengths and special cables on request.

Versions with integrated M12 connector, 4 or 8 poles

Protection degree:                                IP67 according to EN60529

                                                           IP69K according to ISO20653

                                   (Protect the cables from direct high‑pressure

                                   and high‑temperature jets)

Corrosion resistance in saline mist:           ≥300 hours in NSS according to ISO 9227

General data

Electrical data

Rated impulse withstand voltage (Uimp)  :

4kV

Conditional short circuit current  :

1000A according to EN60947‑5‑1

Pollution degree  :

3

In conformity with standards:

IEC 60947‑5‑1, EN 60947‑5‑1, IEC 60204‑1, EN 60204‑1, EN ISO 14119, EN ISO 12100,

EN 60529, ISO 20653, UL 508, CSA 22.2 No.14.

In conformity with the requirements of :

Low Voltage Directive 2006/95/EC, Machinery Directive 2006/42/EC and

EMC Directive 2004/108/EC.

Positive contact opening in conformity with standards:

IEC60947‑5‑1, EN60947‑5‑1.
